WACOM DTK1660K0B Wacom Cintiq 16

• Exceptional creative pen technology with 8,192 levels of pressure sensitivity and tilt-recognition.
• EMR (Electro-Magnetic Resonance) tech draws power from your Wacom Cintiq, meaning you never need to charge the pen.
• Designed for comfort, with rubber grip and accessible side buttons.
• Use the pen’s programmable side buttons to make shortcuts to your favorite software.
• The anti-glare film cuts out distracting reflections.
• See your cursor appear exactly where you would expect with reduced parallax.
• Durable, scratch-resistant materials perfect for daily use.
• The hand rests to help cut down on fatigue when drawing.

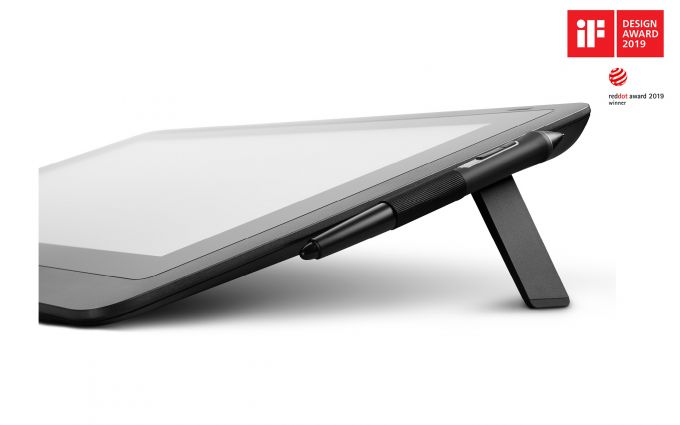

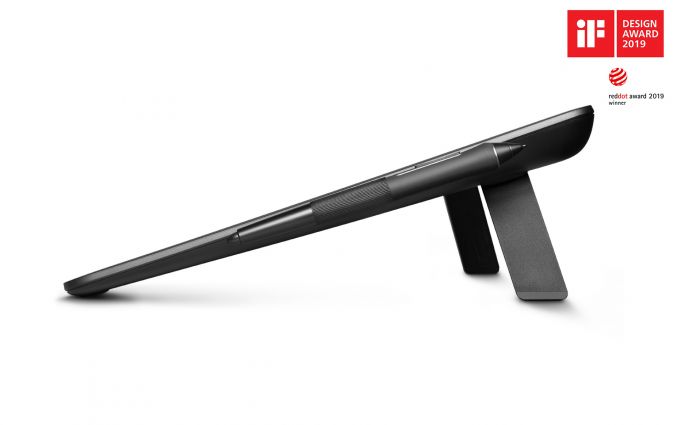

• Integrated foldable legs let you adjust the position so you can work in comfort.
• Full HD display lets you see your work in crystal clear detail.




Wacom Pro Pen 2 - Natural and precise

Virtually no lag

No parallax

Natural tilt recognition

No batteries or recharging

What's included

• Wacom Cintiq 16 Pen display

•  Wacom Pro Pen 2

• Detachable Pen holder with 3 replacement nibs (standard) and nib removal tool

• 3-in-1 cable (1.8m)

• AC adaptor (12V, 3A, 36W)

• Power cable (1.8m)

• Quick Start Guide

• Warranty card (Japan, AP, China only)

• Regulation sheet


Specification

Model Number	DTK1660K0B
Display Size / Resolution	39.6 cm (15.6 in) / Full HD 1920 x 1080
Active Area	344 x 194 mm (13.6 x 7.6 in)
Size	422 x 285 x 24.5 mm (16.6 x 11.2 x 1 in)
Weight	1.9 kg without optional stand
Colour Performance	72% NTSC (CIE1931) typical / 96% sRGB (CIE 1931) typical
Viewing Angle	176/176 (typ)
Contrast Ratio	1000:1 (typ)
Response Rate	22 ms
Power Consumption	Power ON mode (MAX): 27 W Power sleep mode: 0.5 W or less (non-connection USB cable) Power OFF mode: 0.5 W or lower
Aspect Ratio / Brightness	16:9 / 210 cd/m2  (typ)
Color Temperature / Custom Color	9300K, 6500K, 5000K, Custom RGB
Connectivity	3-in-1 cable (with HDMI 1.4, USB 2.0 and AC adapter)
Pen	Battery-free Pro Pen 2 with 2 customizable side switches and 8,192 pressure levels in both pen tip and eraser (patented electromagnetic resonance technology)
Pen Tilt Recognition / Range	±60 levels / 60 degrees
ExpressKey™  Remote (optional)	17 customizable, application-specific ExpressKeys, Touch Ring, Rocker Ring/Home Button, Precision Mode, Display Toggle, Radial Menu, and dedicated pan, scroll, zoom, brush size
Stand	Integrated foldable legs for 19° angle; optional Adjustable Stand for 19°–68° angle
Security	Kensington® Lock Slot (lock purchased separately)
Productivity Boosters	Time-saving on-screen settings; ExpressKeys™,  Touch Ring on optional ExpressKey™  Remote
Ergonomics	Right or left-handed use; integrated foldable legs; optional Adjustable Stand available; Wacom Pro Pen 2 with comfortable, ergonomic grip
Compatibility / System Requirements	Windows® 7 or later (latest service pack/build), Mac OS® X 10.12 or later (latest update); Internet access for driver download
What’s Included	Wacom Cintiq 16 pen display, Wacom Pro Pen 2, detachable pen holder with 3 replacement nibs (standard) and nib removal tool, 3-in-1 cable (1.8 m),  AC adapter (12 V, 3 A, 36 W), power cable (1.8 m), Quick Start Guide, warranty card (Japan, Asia Pacific, China only), regulation sheet
Additional Accessories	ExpressKey™ Remote, Adjustable Stand, Wacom Soft Case L, Wireless Bluetooth® Keyboard, Wacom Pro Pen 2, Wacom Pro Pen 3D, Wacom Pro Pen Slim, replacement nibs, prior generation pens (Pro, Classic, Art, Airbrush, Grip)
