| PRODUCT NAME/CODES |

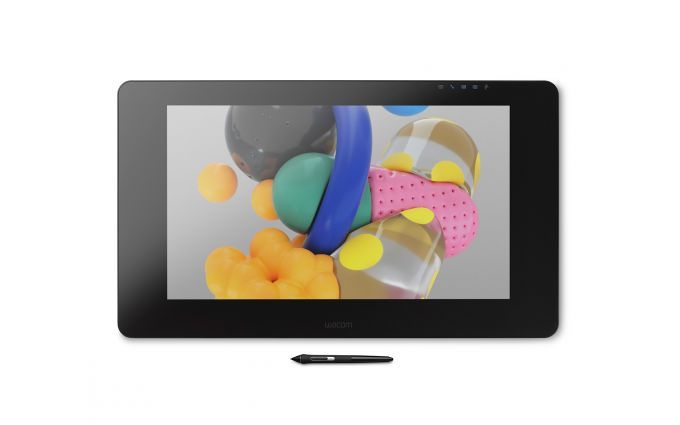

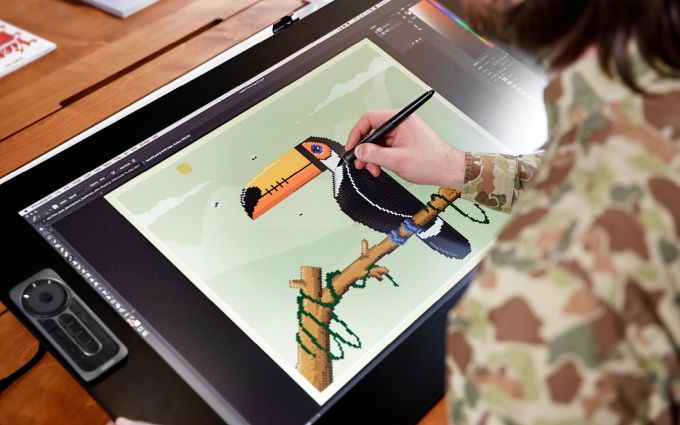

Wacom Cintiq Pro 24 Pen&Touch |
| Internal code name |
BlueJay 24 |
| Global Model Code |
DTH-2420 |
| Marketing / Product Name |
Wacom Cintiq Pro 24 Pen&Touch |
| Product Brand |
Wacom Cintiq Pro 24 Pen&Touch |
| Descriptor/Variant Differentiator |
Creative Pen Display |
| Regional Product Code - WEG ALL |
DTH-2420-EU |
| GENERAL INFORMATION |
|
| Product Color |
Black |
| Regional Bar Code - EAN/JAN |
4949268621274 |
| LOGISTICAL INFORMATION |
|
| Display Dimensions |
677 x 394 x 47 mm |
| 26.65 x 15.5 x 1.9 in |
| Display Weight |
7.2 kg (15.87 lbs.) without stand |
| TBD with stand |
Product Box Dimensions (Single Box)
(l x w x h) |
795*545*183mm |
| 31.29 x 21.45 x 7.20 in. |
Product Box weight (Single Box)
|
11.4kg |
| 25.13 lbs |
Product Carton Dimensions
(Master Box) (l x w x h) |
821*565*203mm |
| 32.32 x 22.24 x 7.99 in. |
Product Carton Weight
(Master Box) |
12.8kg |
| 28.21 lbs |
| Master Box Qty (units per carton) |
1 |
| Stack Height |
Air: 1293mm; Sea: 1874mm |
| SECURITY |
|
| Kensington lock type |
Kensington® Lock Port |
| |
|
| BATTERIES |
None |
| Are batteries included? (Y/N) |
Yes (in ExpressKey Remote) |
| Battery Type/Battery Cell Composition |
Rechargeable Li-ion battery |
| Battery Capacity |
780 mAh |
| Battery Tension |
3.7 V |
| Battery Power (in Watts) |
2.96wh |
| Battery Weight |
17.5g |
| Avg. Battery Life/Charging Time |
≧300 weeks / 8H (standard charging) |
| Battery Usage Disclaimer |
|
| PRODUCT GENERAL |
|
| Box Inclusions |
Wacom Cintiq Pro 24 Pen&Touch display,
Wacom Pro Pen 2 w/ 4-color pen ring set,
ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable),
Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool,
Pen holder,
180W AC adaptor,
1.8m power cable,
1.8m USB-C to USB-C cable ,
3m DisplayPort to DisplayPort cable,
3m HDMI2.0 to HDMI2.0 cable,
3m standard USB-A to USB-A cable, DisplayPort to Mini DisplayPort adapter,
Quick Start Guide,
Warranty card (WCL, WCN only),
Regulation sheet,
Cleaning cloth |
| Box Inclusions - CHINA ONLY |
Wacom Cintiq Pro 24 Pen&Touch display,
Wacom Pro Pen 2 w/ 4-color pen ring set,
ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable),
Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool,
Pen holder,
180W AC adaptor,
1.8m power cable,
1.8m USB-C to USB-C cable ,
Quick Start Guide,
Warranty card (WCL, WCN only),
Regulation sheet,
Cleaning cloth |
| Downloadable Software / offer |
None |
| Compatible Accessories |
Wacom Ergo Stand 2 for Cintiq Pro24,
Wacom Cintiq Pro Engine,
Wacom Color Manager,
Wacom Pro Pen 3D,
Wacom Keyboard,
Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2,
Additional previous generation pens (Classic, Airbrush, Art, Pro Pen),
Replacement ExpressKey Remote,
Replacement Wacom Pro Pen 2,
VESA mount adaptor (coming later), Wacom Flex Arm (coming later),
Wacom Pro Pen slim (coming July 2018),
Wacom Link Plus (China only) |
| DISPLAY |
|
| Technology |
AHVA UHD high brightness panel |
| Glass / Surface |
edge-to-edge tempered glass with AG etching |
| Screen Size |
60 cm / 23.6 in |
| Active Area |
522.432mm (H) x 293.868mm (V) (20.55 X 11.57 in) |
| Aspect Ratio |
16:9 |
| Number of Pixels |
3840 x 2160 (4K) |
| Supported Resolution |
3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280x 720, 1024 x 768, 800 x 600, 720 x 400, 640 x 480 pixels |
| White Luminance Uniformity |
95% (Min.) / 105%(Max). Condition: Uniformity compensation: Enable |
| Pixel Pitch |
0.136 (H) x 0.136 (V) mm |
| Viewing Angle |
Range Up to 88° from vertical (2° from horizontal, up to 90°) |
| Display Colors |
1.07 billion colors (10 bits color) |
| Color Gamut |
99% Adobe RGB (typ)
97% sRGB (typ)
97% Rec 709 (typ)
60% Rec 2020 (typ)
85% DCI P3 (typ)
96% EBU (typ) |
| Industry Standard Pre-set |
Adobe RGB, 6500 deg. K white point default |
| Contrast Ratio |
1000:1 (typ) |
| Luminance |
Uniformity Off 400 cd/m2 (min, D65, duty 100%)
Uniformity On 235 cd/m2 (min, D65, duty 100%)
Uniformity On 150 cd/m2 (typ, D65, duty 50%) |
| Response Time |
14 ms (typ) |
| Plug and Play |
DDC/CI |
| LCD Quality |
Each LCD panel is produced under very stringent quality standards. Production techniques cannot guarantee an absolutely perfect TFT display. Wacom does not allow any pixel to be always white or always black. A small number of pixels are allowed to show a wrong color for some parts of the color spectrum. This does not mean the display is defective. |
| TOUCH SPECIFICATIONS |
|
| Multi-touch |
YES |
| Touch Active Area |
522.432 x 293.868mm |
| Resolution |
0.025 mm/point |
| Coordinate Accuracy |
± 1mm (Center) |
| Maximum Report Rate |
100 point/sec |
| PEN SPECIFICATIONS |
|
| Pen Name |
Wacom Pro Pen 2 |
| Pen Part Number |
KP-504E |
| Pressure Levels |
8192 levels (pen and eraser) |
| Pen Type |
Pressure-sensitive. Cordless, battery-free |
| Number of Switches |
2 side switches |
| Pen Tilt Recognition / Range |
+/- 60 degrees / 40 degrees |
| Resolution |
0.005 mm/point (5080 lpi) |
| Pen Technology |
Electro-magnetic resonance technology |
| Pen Accuracy Assurance Height |
0 mm from cover plate |
| Reading Height |
5 mm or more (center) |
| Pen Carrying Case Included |
Yes |
| Pen Stand Included |
Yes with 6 standard and 4 felt nibs |
| Pen Grip |
Latex-free silicone rubber |
| Extra Nibs, Color Rings and Nib removal |
Yes (10 spare nibs, one 4-color pen ring set, nib removal ) |
| PRODUCTIVITY BOOSTERS |
|
| ExpressKeys |
Yes - on EKR |
| Rocker Ring & Home Button |
Touch Ring on EKR |
| Precision Mode |
Yes |
| Display Toggle |
Yes |
| Touch Ring |
Yes - on EKR |
| Touch Strips |
No |
| Dedicated pan, scroll, zoom, brush size |
Yes |
| On-screen Controls |
Yes |
| Radial Menu |
Yes |
| EXPRESSKEY REMOTE |
|
| Dimensions (W X H X D) |
135 x 52 x 10 mm ( 5.31 x 2.0 x .4 in.) |
| Weight |
110 gm (.24 lbs.) |
| Transmission Type |
2.4GHz RF |
| Battery Type |
Rechargeable Li-ion battery |
| Charging Time |
up to 2 hours |
| Programmable Keys |
17 customizable buttons; up to 5 ExpressKey Remotes can be connected to each display |
| Continuous Operation Time |
160 hours if a key is pressed every 30 seconds |
| EKR Box Contents |
ExpressKey™ Remote and rechargeable battery, wireless receiver, micro USB to USB cable, quick start guide |
| ExpressKey Remote |
Some computers and USB 3.0 hubs generate interference which can reduce the operating distance of the ExpressKey Remote. If necessary, increase the operating distance of the ExpressKey Remote by using the provided USB 2.0 cable adaptor. Please note that using the USB 2.0 cable adaptor will cause the UDB 3.0 port on the Cintiq Pro to operate at USB 2.0 speed. |
| ERGONOMICS |
|

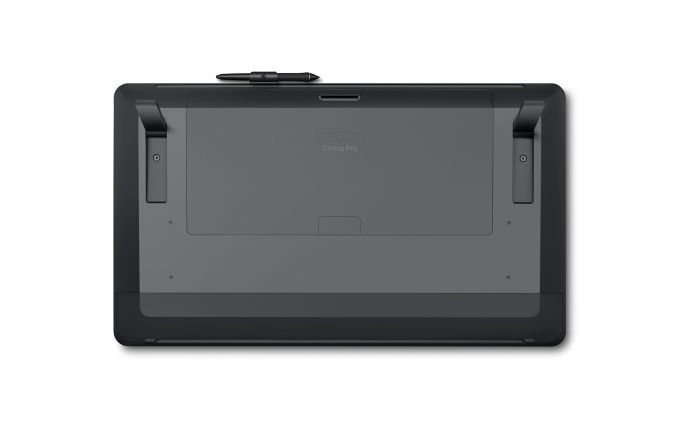

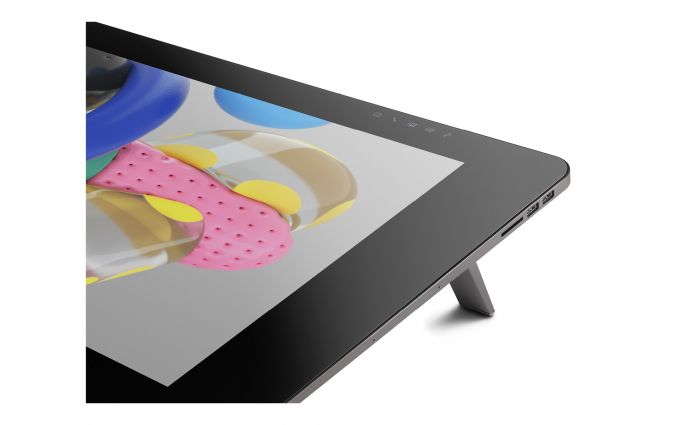

| Built in Stand |
Yes |
| Built-in Stand Adjustability |

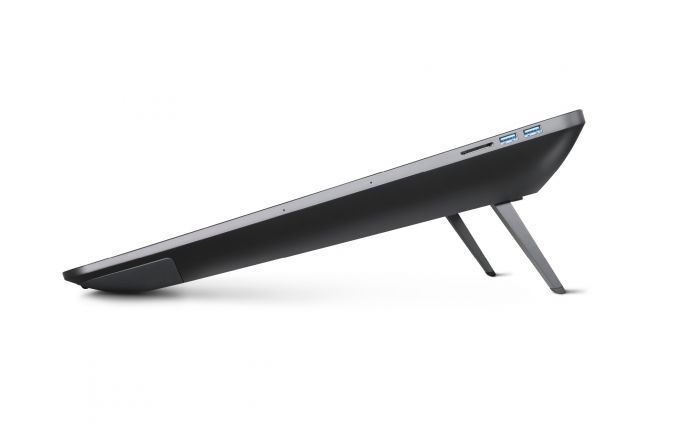

5 degrees without legs or 20 degrees using built-in, fold-out legs |
| Optional stand(s) |
Wacom Ergo Stand,
Wacom Flex Arm (coming later),
Wacom VESA mount (coming later) |
| Optional Stand Adjustability |
Wacom Ergo Stand for 24 (Apr/2018)
Wacom Flex Arm (coming later),
Wacom VESA mount (coming later) |
| Optional Ergo Stand Price - SRP ($US) |
$ 399.00 |
| Optional Ergo Stand Weight |
19kg |
| Optional Stand dimensions |
WHD: 681.6X417.7X404mm |
| SYSTEM REQUIREMENTS |
|
| System Requirements |
Windows® 7 or later (latest service pack/build), OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download. |
| System Requirements - CHINA ONLY |
Windows® 7 or later (latest service pack/build), OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD); Internet access for driver download. |
| CONNECTIONS |
|
| Ports |
4 x USB3 ports*
1 x USB C port
1 x USB3 port (Upstream port connected to computer)
1 x HDMI2.0 port
1 x DisplayPort
1 USBA Port ( For ExpressKey Remote dongle)
*When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K input video bandwidth over USB-C. |
| Ports - CHINA ONLY |
4 x USB2 ports
1 x USB C port
1 USB-A Port (for ExpressKey remote dongle) |
| Included Cables/Adapters |
USB A to USB A cable (3m),
DisplayPort to DisplayPort cable (3m),
HDMI2.0 to HDMI2.0 cable (3m),
USB-C to USB-C cable (1.8m),
DisplayPort to Mini DisplayPort adapter, MicroUSB to USB cable (30 cm; for ExpressKey Remote)
Power Cables (1.8m) |
| Included Cables/Adapters - CHINA ONLY |
USB-C to USB-C cable (1.8m),
MicroUSB to USB cable (30 cm; for ExpressKey Remote)
Power Cables (1.8m) |
| PC and Mac connectivity requirements |
USB-C supporting DisplayPort Alternate Mode (DPAM), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port |
| PC and Mac connectivity requirements - CHINA ONLY |
USB-C supporting DisplayPort Alternate Mode (DPAM), or DisplayPort* and USB-A port, or HDMI port* and USB-A port
(* Requires Wacom Link Plus) |
| Other Ports |
None |
| Kensington Lock Slot |
Yes - compatible for Kensington® Lock |
| Sensors |
None |
| Speakers |
None |
| Audio |
Audio headset jack, built-in microphone |
| SD Card Slot |
Yes |
| Network Interface |
USB-C |
| Input Voltage |
100 to 240 VAC, 50/60HZ |
| Output Voltage |
19.5V / 9.23A |
| Power Consumption |
Power ON mode (MAX): 100 W
Power sleep mode: 2.0 W or lower
Power OFF mode: 0.5 W or lower |
| Power Management |
VESA Display Power Management Signaling (DPMS) |
| Storage Temperature and Humidity |
Maximum storage humidity is 38% at a temperature of 60 deg. C and a maximum storage temperature of 42 deg. C at a humidity of 90% |
| Operating Temperature and Humidity |
-10 to 60 deg C, Humidity 20-80% RH (non condensing) |
| Input Video Connector |
USB-C, DisplayPort, HDMI |
| Input Video Signal |
USB-C, DisplayPort, HDMI |
| Input Video Connector - CHINA ONLY |
USB-C. DisplayPort and HDMI requires Wacom Link Plus. |
| Input Video Signal - CHINA ONLY |
USB-C. DisplayPort and HDMI requires Wacom Link Plus. |
| Output Video Connector |
None |
| Output Video Signal |
None |
| Graphics Input |
USB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI2.0 port required for 3840 x 2160 resolution |
| Graphics Input - CHINA ONLY |
USB type C port (supporting DisplayPort Alternate Mode) or DisplayPort* required for 3840 x 2160 resolution. HDMI port required for up to 2560x1440 resolution*. (*requires Wacom Link Plus for DisplayPort or HDMI support) |
| CERTIFICATIONS |
|
| Specialize PC Certification |
VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS |
| WACOM COLOR MANAGER |
|
| Part Number |
EODIS3-DCWA |
| UPC Code |
753218989666 |
| Price |
$249.99 |
| Weight |
.28 lbs. (130 grams) |
| Dimensions |
2.51 x 1.5 x 2.55 in. (64 x 38 x 65 mm) |
| Wacom Color Manager System Requirements |
Win7 (SP1), Win 8, MAC OSX 10.10 or higher, Intel Processor, powered USB port, monitor resolution of 1024 x 768 pixels or higher |
