Features:

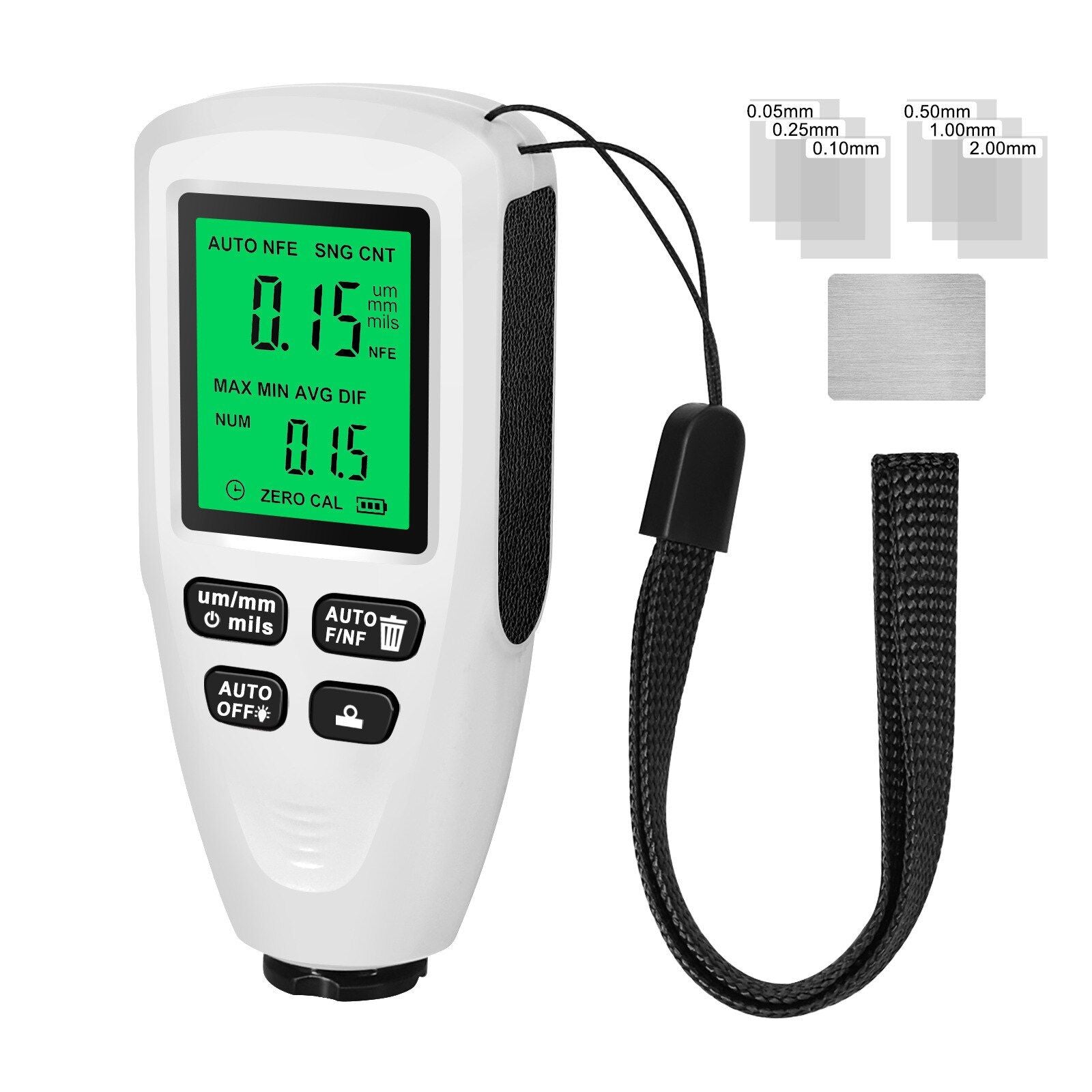

Paint Thickness Gauge: The thickness gauge is used to measure the thickness of metal coatings and coatings, such as paint/enamel/chrome on steel, paint and anodic oxidation layer on aluminum/copper. Automatically detects the properties of the substrate.

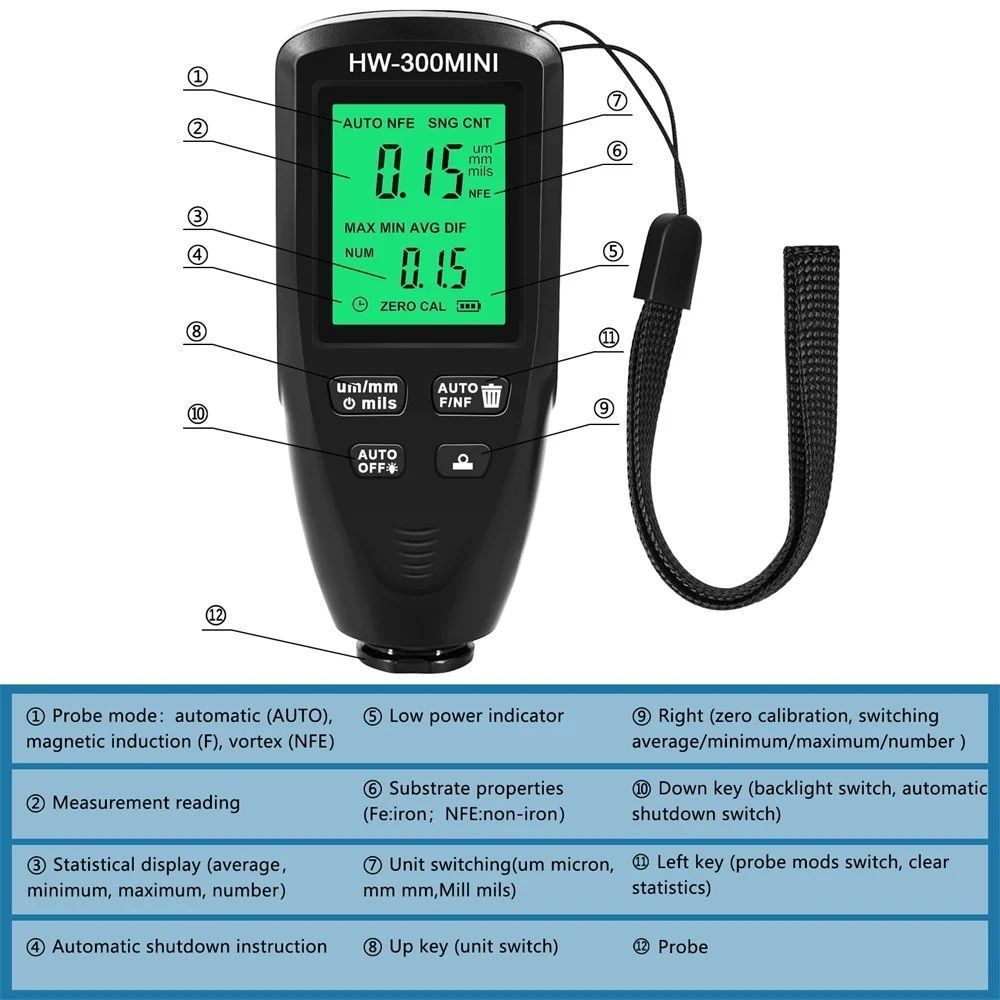

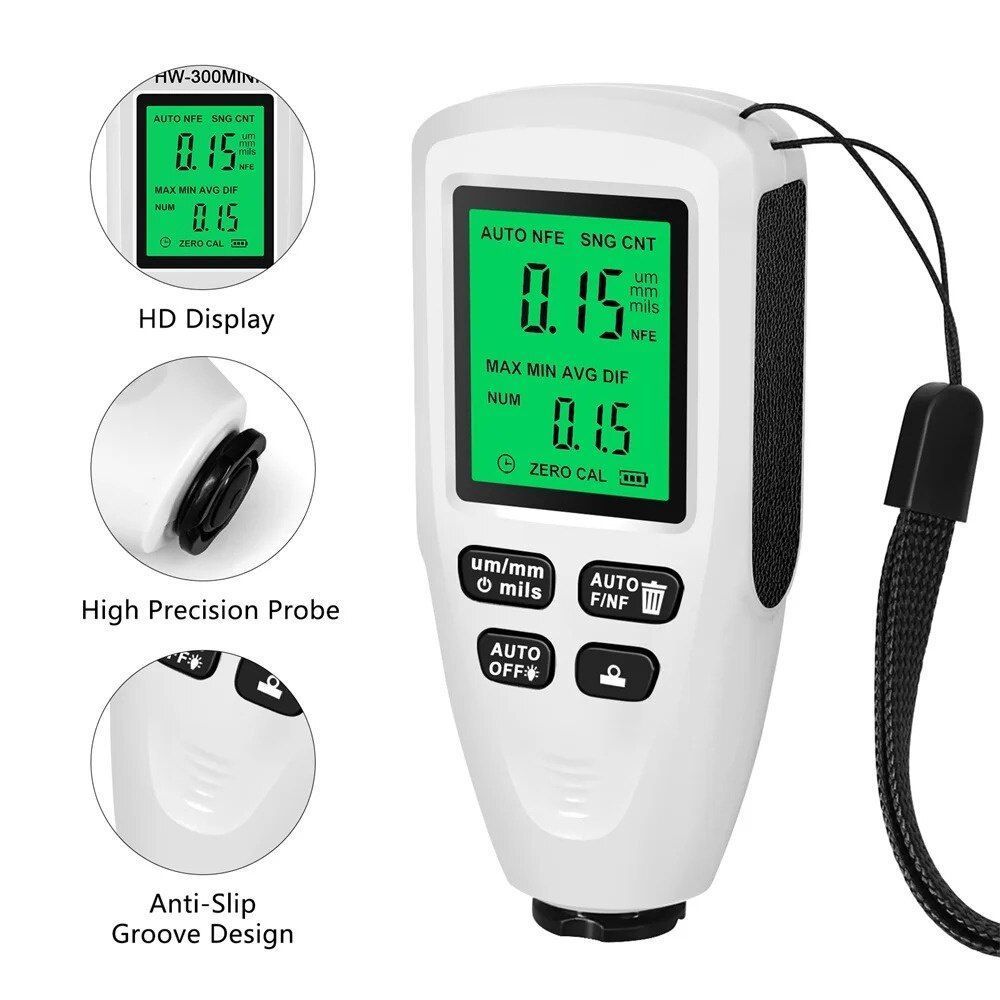

Easy to read: HD display, paint thickness displayed on the large screen, unit switching (um micron, mm mm, Mill mils), accurate and fast testing. Anti-slip design: The design of the paint thickness gauge is ergonomic, the anti-slip groove makes it easy to test during use. Palm size, easy to handle.

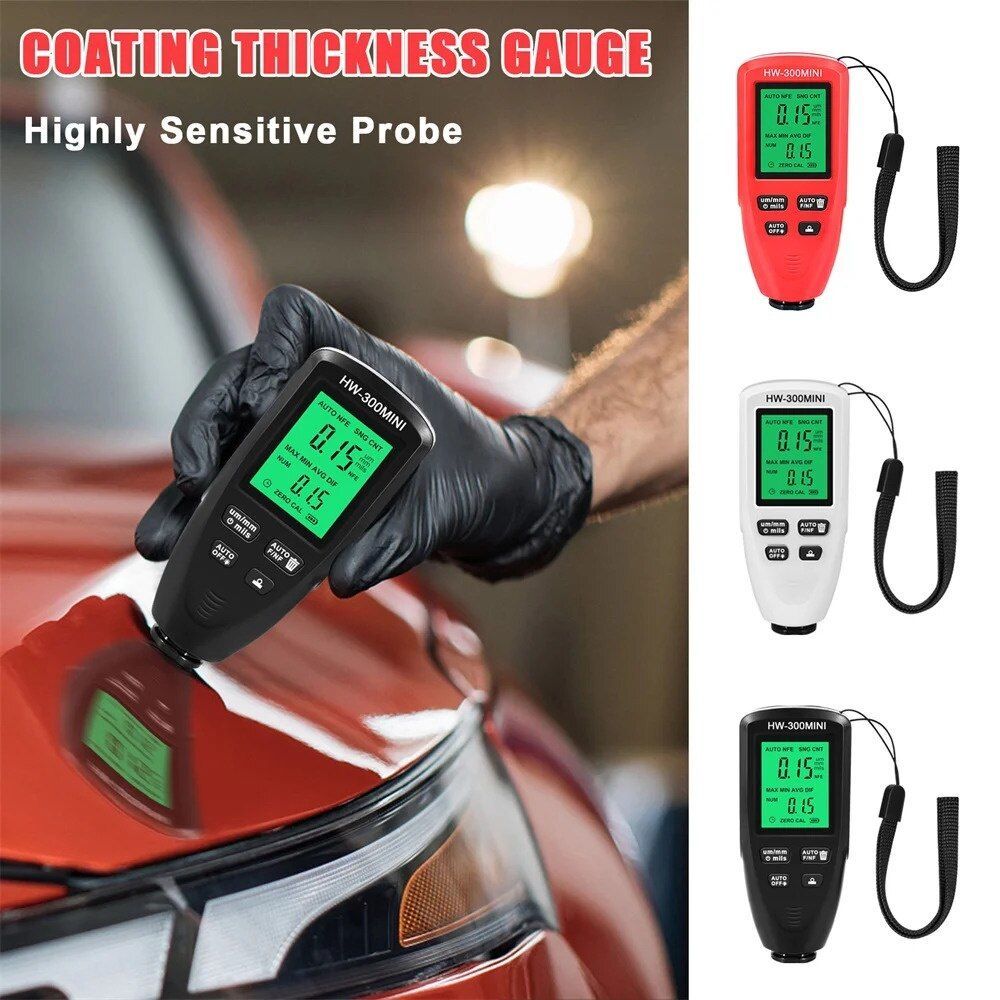

For car buyers: When buying a second-hand car, the store may not be able to tell us that the car has had a serious collision. When buying a used car, check the car's paint to make sure that the paint thickness on each panel is about the same.
Widely used: This instrument is used for non-destructive measurement of coating and paint thickness. It is a necessary equipment for material surface treatment, widely used in manufacturing, metal processing, chemical industry, commodity inspection and other fields, and can work stably in laboratories, workshops and outdoors.
Specifications:
Item: Paint Thickness Gauge
Color: White
Material: ABS
Battery: 2 * AAA batteries (not included)
Measurement range: 0-2000UM
Measurement accuracy: ± (3%+1um)
Resolution: 0um~99.9um(0.1um) 100um~999um(1um) >1000um(0.01mm)
Minimum convex radian: 5mm
Minimum concave radian: 25mm
Minimum measured area: diameter 20mm
Minimum substrate thickness: 0.2mm, 0.05mm
Maximum measurement speed: 2 readings per second
Operating temperature: - 10℃~50℃
Dimension: 9.5*4*2.2cm
Package size: 11.8*5.8*3cm
Weight packaging: 90g v Package List: v1* Paint Thickness Gauge
1 x A piece of calibration
1 x User Manual
