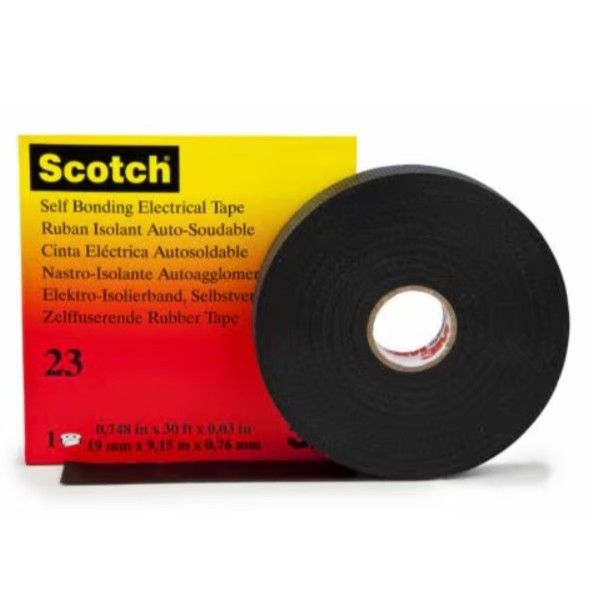

Scotch® Rubber Splicing Tape 23, Black, 19 mm x 9.15 m x 0.76 mm, Self-Fusing Electrical Insulation Tape

Scotch® Rubber Splicing Tape 23 is a premium self-amalgamating electrical insulation tape made from highly conformable Ethylene Propylene Rubber (EPR). Designed for low- and high-voltage applications up to 69 kV, it provides void-free, moisture-resistant insulation and sealing. With excellent electrical properties, superior flexibility, and self-fusing performance, this tape is ideal for cable splicing, moisture sealing, and electrical maintenance in demanding environments.

Key Features:

• Self-Fusing EPR Construction - Self-amalgamating ethylene propylene rubber backing creates a secure, seamless insulation layer.

• Suitable for High-Voltage Applications - Designed for electrical insulation and cable joints up to 69 kV.

• Excellent Moisture Protection - Stretches up to 100% to create void-free, moisture-resistant insulation.

• Highly Conformable Design - Easily wraps around irregular shapes, connections, and cable joints.

• Continuous Temperature Resistance - Maintains reliable performance at temperatures up to 90°C.

• Non-Vulcanizing Formula - Shelf-stable material remains ready for use without hardening during storage.

• Clean & Easy Application - Special polyester liner prevents sticking during unwinding and installation.

• Certified Performance - ASTM Approved and RoHS compliant for dependable electrical applications.

Technical Specifications:

• Brand: Scotch®

• Product Name: Rubber Splicing Tape 23

• Tape Type: Self-Fusing Electrical Rubber Splicing Tape

• Color: Black

• Material: Ethylene Propylene Rubber (EPR)

• Width: 19 mm

• Length: 9.15 m

• Thickness: 0.76 mm

• Voltage Rating: Up to 69 kV

• Temperature Rating: Continuous operation up to 90°C

• Stretch Capability: Up to 100%

• Moisture Resistant: Yes

• Self-Amalgamating: Yes

• Non-Vulcanizing: Yes

• Shelf Stable: Yes

• Liner Type: Polyester Release Liner

• Compliance: ASTM Approved, RoHS 2002/65/EC Compliant

• Applications: Electrical Insulation, Cable Splicing, Joint Sealing, Moisture Protection

• Unit of Sale: Roll

• EAN: 7891040003860

• Manufacturer Part Number: HT002007413

• Product Weight: 0.175 kg

• Package Dimensions: 11.5 × 11.5 × 2.5 cm

Recommended Applications:

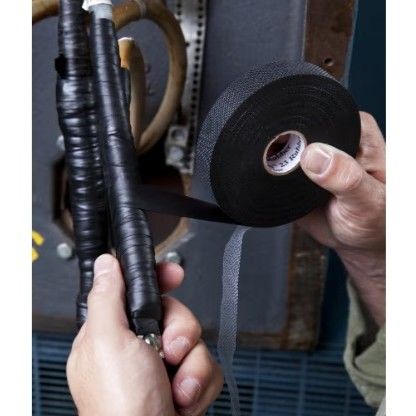

• Low- and high-voltage cable splicing

• Electrical joint insulation up to 69 kV

• Moisture sealing of electrical connections

• Power cable maintenance and repairs

• Industrial, utility, and commercial electrical installations

• Protective insulation in demanding environments
